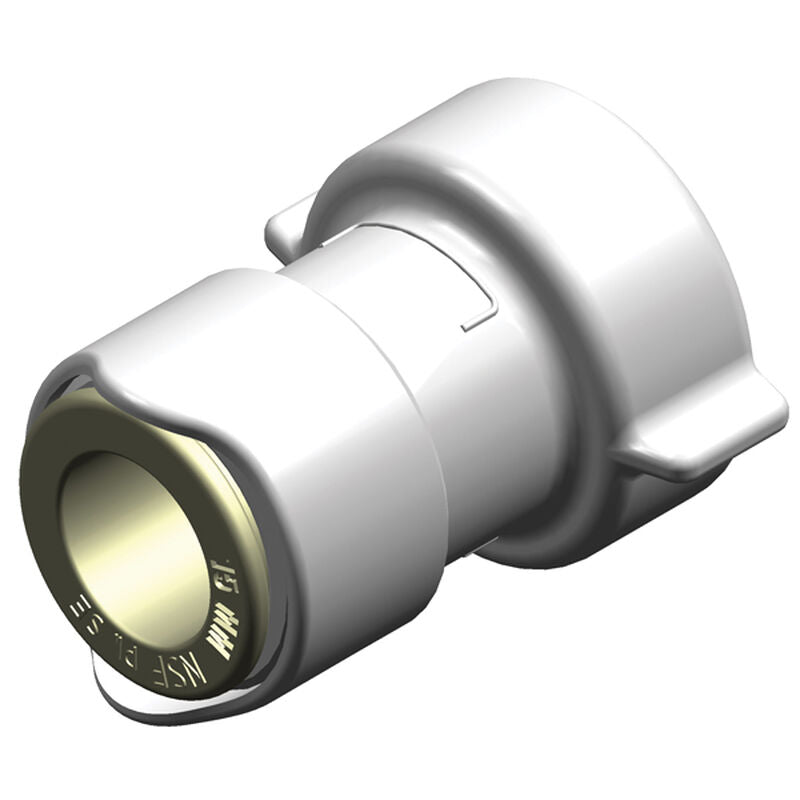

Whale Quick Connect Adapter 3/4" BSP Female to 15mm (Qty. 2)

Whale's Quick Connect water system components offer a mess-free solution for achieving professional plumbing results quickly. These fittings feature a unique collet that makes installation easy - simply cut the tubing, push it into the fitting, and the collet will secure it automatically. The system utilizes 15mm-OD semi-rigid tubing in blue and red varieties for cold and hot water, respectively. These connections are reusable and can be easily disassembled. Made from non-toxic, food-grade materials, the system allows for maximum flow without the need to replumb your entire boat. Adapters are available for connecting to most boat plumbing systems.

Additional Features

• Unique “Double Gripper” provides secure lifelong tube retention, even at excessive pressures
• Collet has internal support ring ensuring O-ring seal is held in position and does not distort or leak under pressure
• The innovative tube supporting “cage collet” design eliminates leaks where fittings are close to tight bends
• High-integrity, single-piece molding improves the reliability and strength of the fittings
• Outer sleeve incorporates collet cover, thus preventing accidental tube releases
• No collet clips are used, thus the Whale system reduces costs and speeds up installation time
• Unique adapter fittings enable partial upgrades to boat's plumbing system

Specifications

• Material: Fittings: Glass-filled polypropylene; Tubing: Polyethylene
• Maximum Pressure: Hot water: 6 bar (90psi); Cold water: 12 bar (180psi)
• Maximum Temperature: Hot water: 65°C (180°F); Cold water: 20°C (68°F)
• Maximum Bend Radius (15mm Tubing): 75mm (2 15/16")
• Minimum Dry Storage Temperature: -40 ºC (-40 ºF) NOTE: System must be fully winterized to prevent frost damage.
