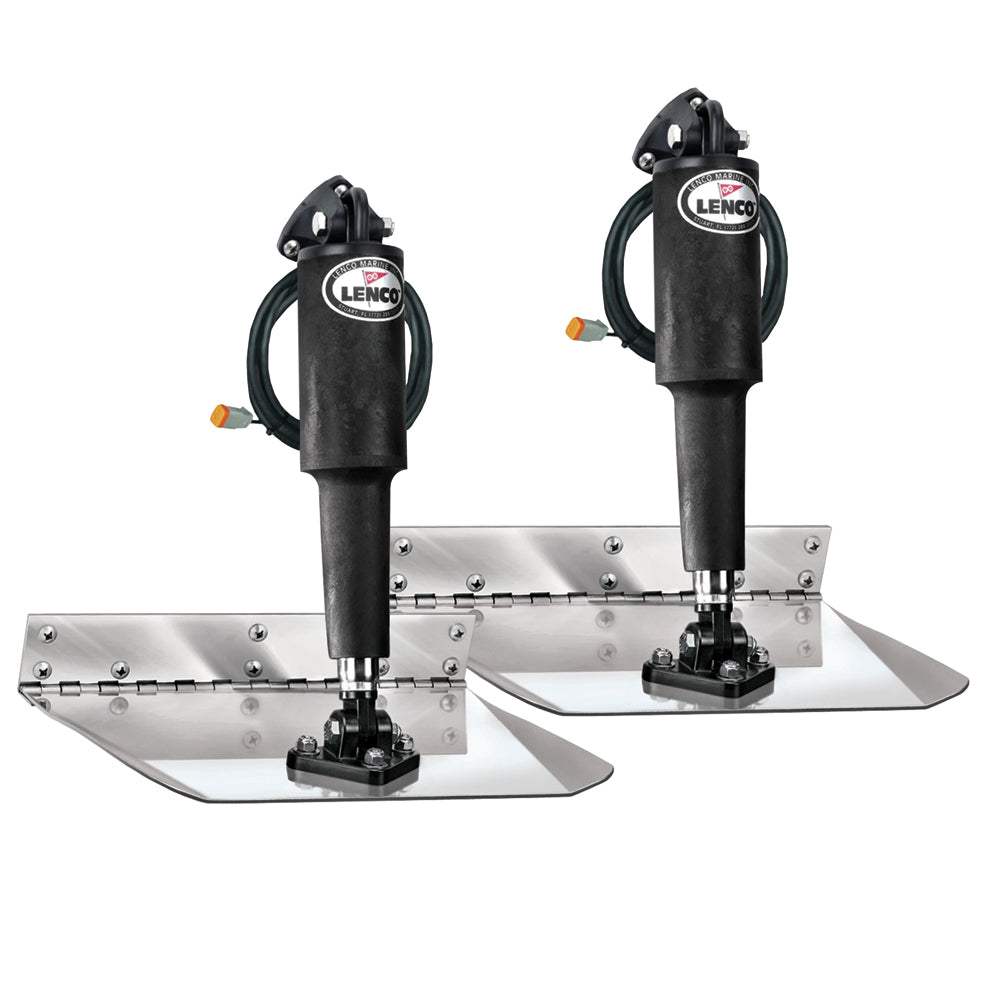

Lenco 9" x 12" Electro-Polished Standard Trim Tab Kit [15113-101]

9" x 12" Electro-Polished Standard Trim Tab Kit
12 Volt

Fast response electric actuators for precise control. Fully submersible. All Plug & Play Deutsch connections. Blades areconstructed of 12-gauge 304 Electro-Polished stainless steel with a 5/8" flared trailing edge & 1/8" diameter stainless steel hinge pin.

Kits include:

• (2) 12-gauge stainless steel Electro-Polished blades

• (2) 15054-001 actuator with 6' leads and Deutsch connectors

• (2) 30133-103 20' actuator extension wiring harnesses

• (2) 15085-001 upper mounting brackets with gland seal

• (2) 50014-001 lower mounting brackets

• Lenco owner's/installation manual

• Stainless steel mounting hardware

• Boat Length:16' - 25'

• L" x W":9" x 12"

• Hinge Height:2"

• Minimun Transom Height:14"

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Construction: Stainless Steel
• Box Dimensions: 5"H x 13"W x 14"L WT: 16.85 lbs
• UPC: 874847006774
