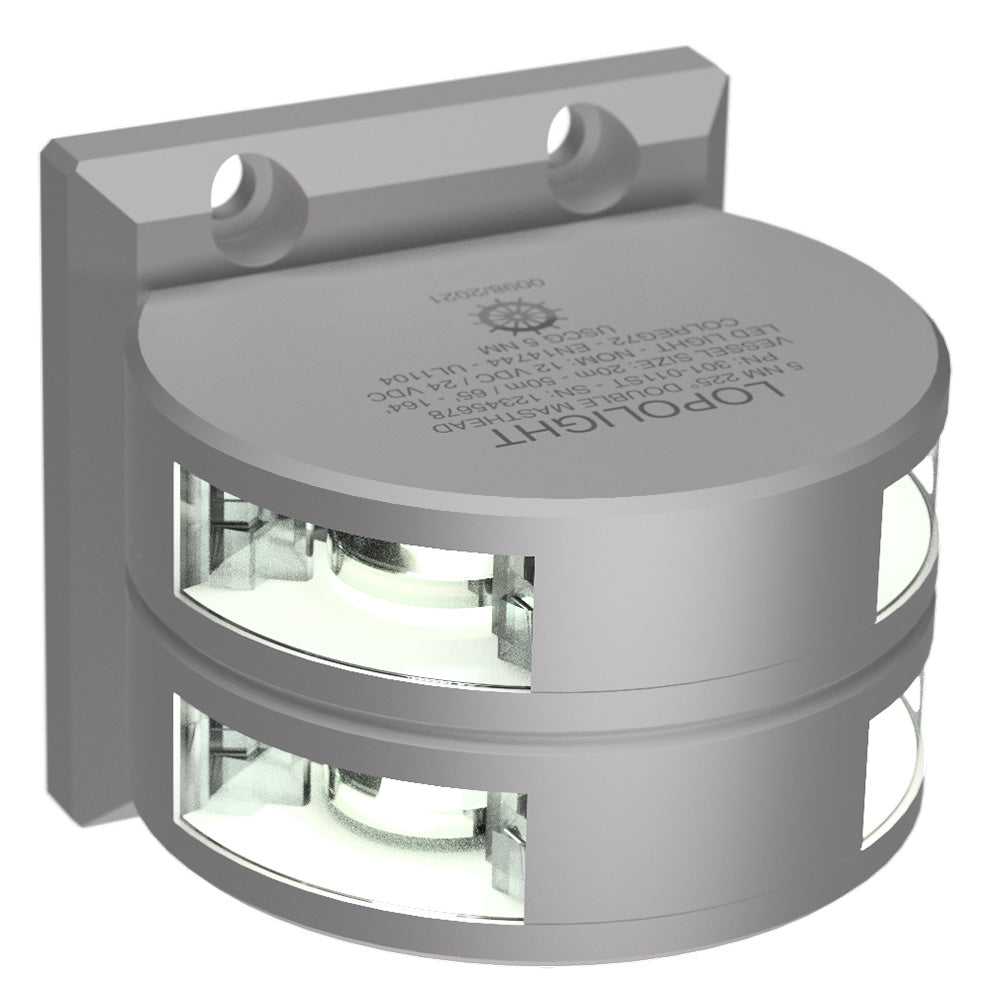

Lopolight Double Stacked Masthead Light - 5nm - Vertical Mount - 225 - Silver Housing w/0.7M Cable [301-011ST]

Double Stacked Masthead Light - 5nm - Vertical Mount - 225° - Silver Housing with 0.7M Cable

Specifications:

• Operating temperature: -25°C to 55°C
• Light Color: White
• Intensity: >52cd
• Dimensions (metric/imperial): 92,5 x 88,6 x 85/3.6" x 3.4" x 3.3"
• Mounting: Vertical
• Materials: Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
• Operating Voltage: 10-32VDC
• EAN: 5704438013124
• IP rating: IP68
• Power draw (W): 4,1
• Connection: 0.7m cable
• Current consumption (mA @ 12VDC): 320
• Current consumption (mA @ 24VDC): 170
• Vessel size: 20-50M
• Min. feed wire gauge: 0.5mm2 AWG22
• Weight (kg/oz): 1kg/35.27oz

Included In Package:

• 1 Navigation light
• Precabled with 0.75 meter shielded marine grade cable
• 2 Mounting screws (M6 * 8 mm)
• Installation guide
