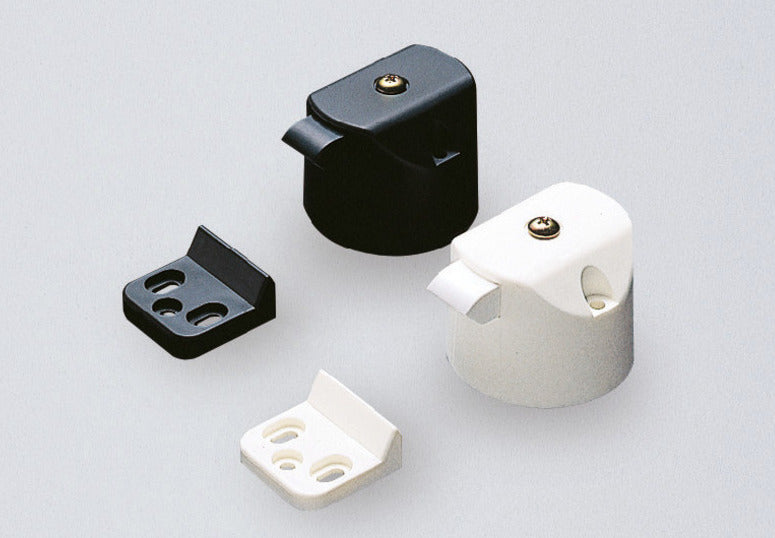

PKL Push Button Latch Body Only - White

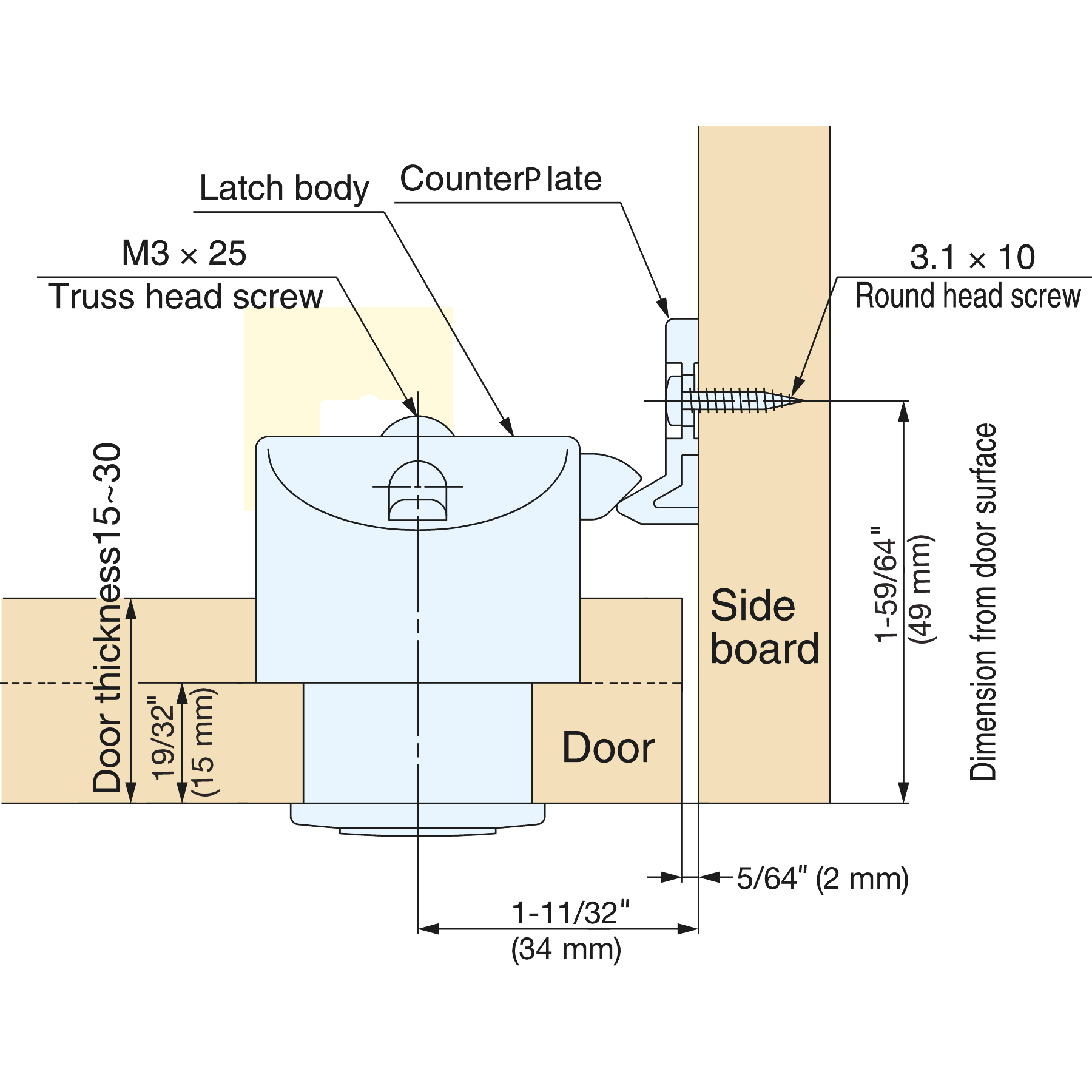

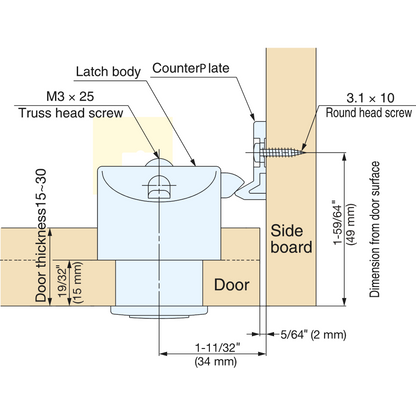

The latch engages automatically when the door closes. Press the knob inward to secure the latch, and press it again outward to release it. This push knob provides secure locking with an elegant design. Its plastic base mounts on the door’s rear surface or can be mortised for thicker doors. The neck fits recessed into the door, with only a thin flange visible, keeping the mechanism just 4mm above the surface—around 1/8" when the knob is flush. The counter plate or strike plate installs on the cabinet’s side wall.

• Knob protrudes a total of 19mm (3/4") when released
• Door thickness from 15 - 30mm (5/8" to 1-13/16"); door up to 15mm (5/8") thick with no counterbore required
• Holding force: 22 lbs
• Zinc alloy, ABS plastic
• NOTE: Push knob and latch body are sold separately.
