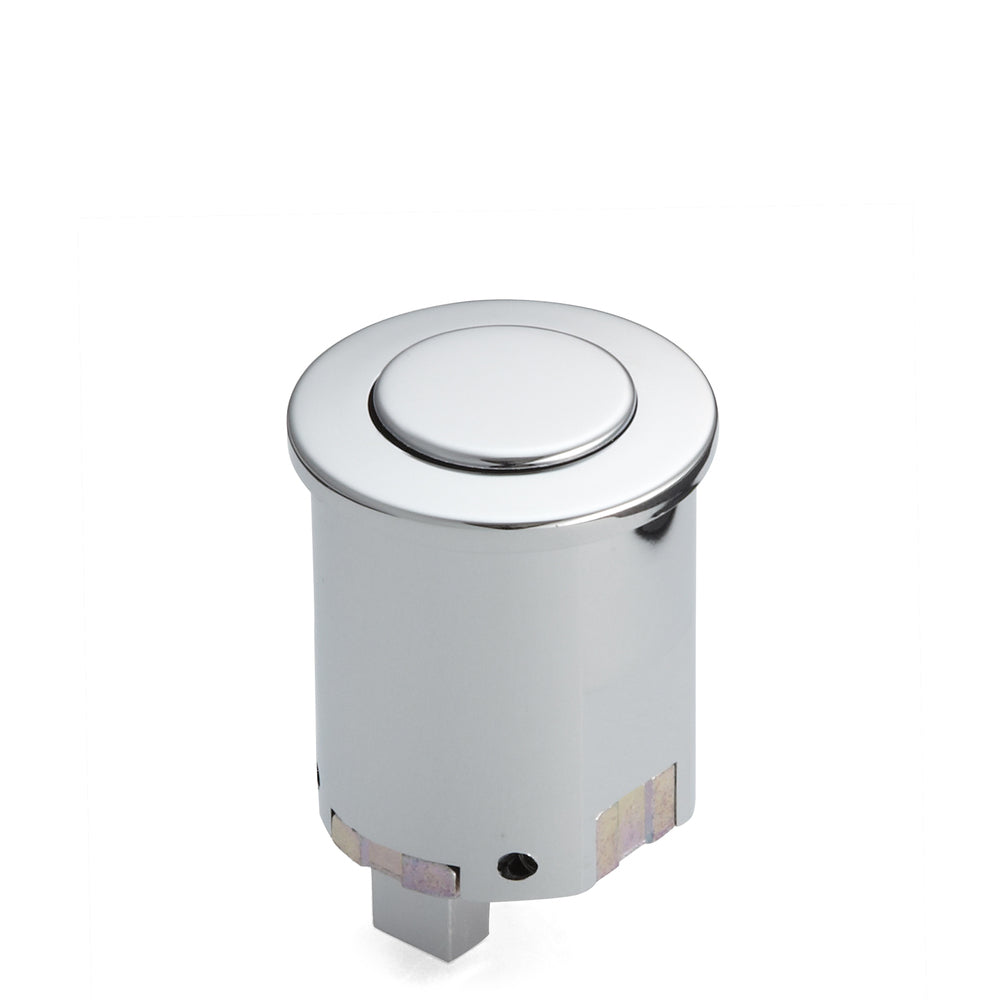

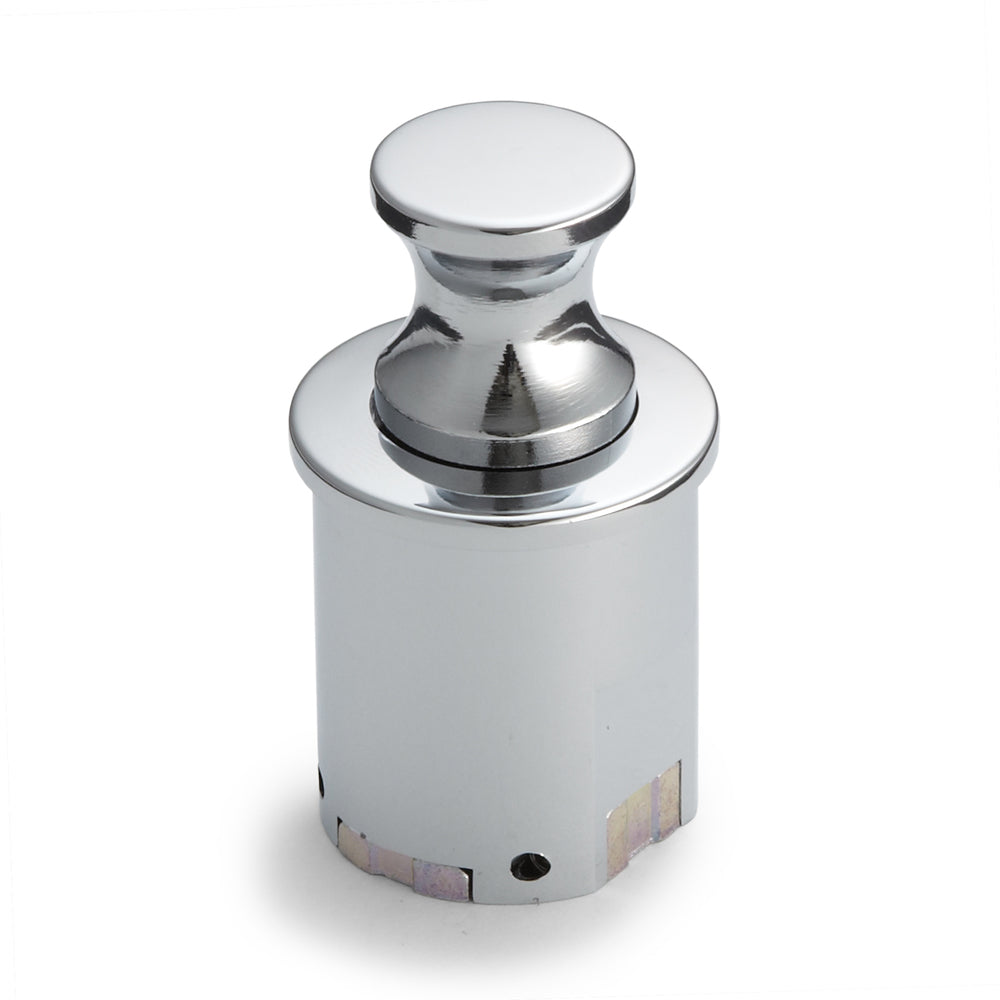

PKL Push Knob , Chrome

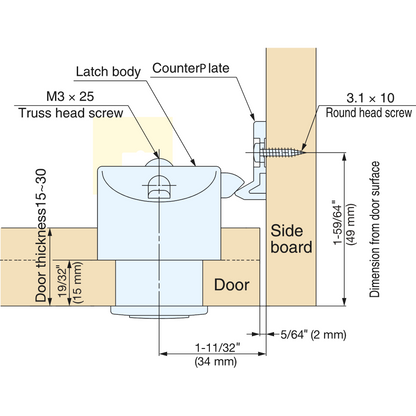

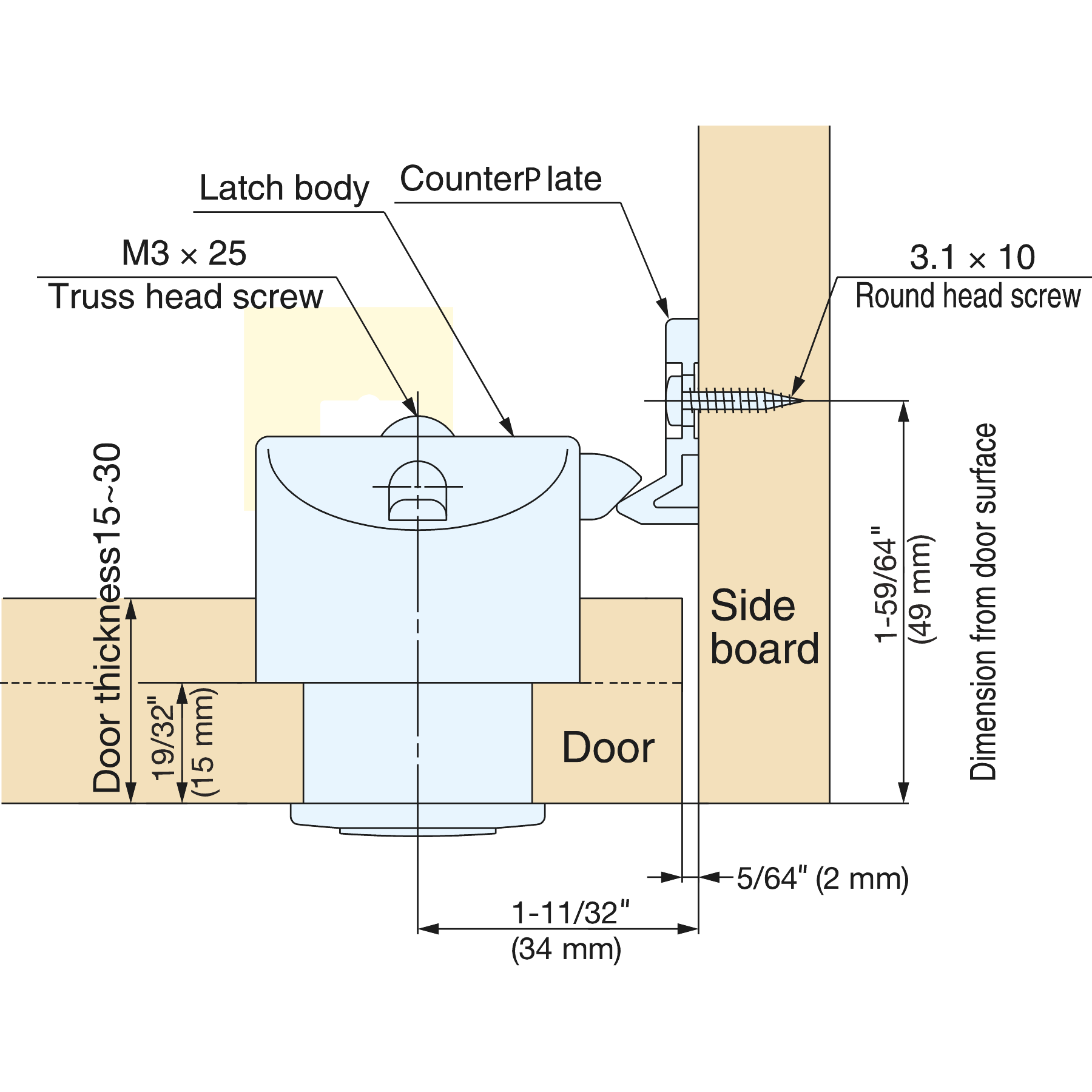

When the door is closed, the latch automatically engages. Press the knob inward to lock the latch flush with the door surface. Press it again to extend the knob outward, releasing the latch. This push knob combines safety with a streamlined design. The plastic base (sold separately) mounts on the door’s rear surface or can be recessed for thicker doors. The neck is embedded into the door up to a slim flange, leaving only a 4mm protrusion—just over 1/8"—when recessed. The counter plate or strike plate attaches to the cabinet’s side wall.

• Knob protrudes a total of 19mm (3/4") when released
• Door thickness from 15 - 30mm (5/8" to 1-13/16"); door up to 15mm (5/8") thick with no counterbore required
• Holding force: 22 lbs
• Zinc alloy, ABS plastic
• Push knob and latch body sold separately; see Related Products, below, for the latch body

Note: This is only the push button knob.  Since the knob is more subject to corrosion or breakage these are sold separately.  If you want to install a completely new latch you will also need part
