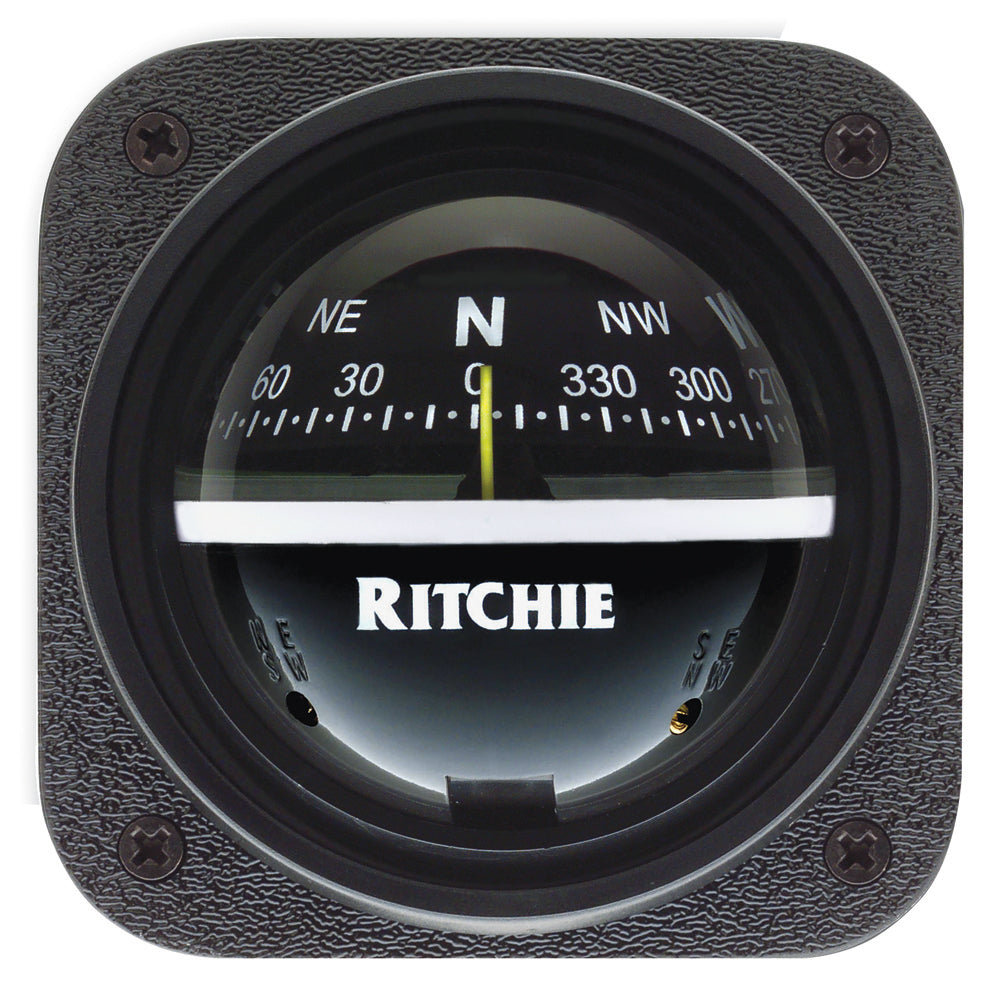

Ritchie V-537 Explorer Compass - Bulkhead Mount - Black Dial [V-537]

Explorer Compass

Explorer Compass Features:

• 2-3/4" Easy to Read Direct Reading Dial

• Viewing is adjustable to 30 Degrees

• 12V Night Illumination

• Built-in Compensators to Easily Adjust for Deviation

• Easily Installed, Fits 3" (7.62cm) Mounting Hole

• Scientifically Matched Sapphire Jewel & Hardened Steel Pivot Dial Movement

• Powerful DirectiveForce Magnets for Fast Heading Lock-on

• High Temperature Composite Construction for Extended Operating Range

• 100% Repairable

• Exclusive 5-Year Ritchie Warranty

Notes:
Comes standard with 12V lighting. 24V lighting option is available.

Some custom built OEM models may have different lighting. Contact Ritchie for replacement lighting.

Specifications:

• Read: Front
• Mounting Style: Bulkhead
• Lubber Lines: Yes
• Backlight: Yes
• Box Dimensions: 5"H x 6"W x 6"L WT: 0.8 lbs
• UPC: 010342161192

Quick Guide (pdf)
Owner's Manual (pdf)
